LTSI09 Stackable Single syringe pump
  • LTSI09 Stackable Single syringe pump
  • LTSI09 Stackable Single syringe pump
  • LTSI09 Stackable Single syringe pump
  • LTSI09 Stackable Single syringe pump
  • LTSI09 Stackable Single syringe pump
  • LTSI09 Stackable Single syringe pump
  • LTSI09 Stackable Single syringe pump
  • LTSI09 Stackable Single syringe pump

  • No: LTSI09
  • Type: Syringe and infusion pump
  • Dimension:
  • Characteristics:

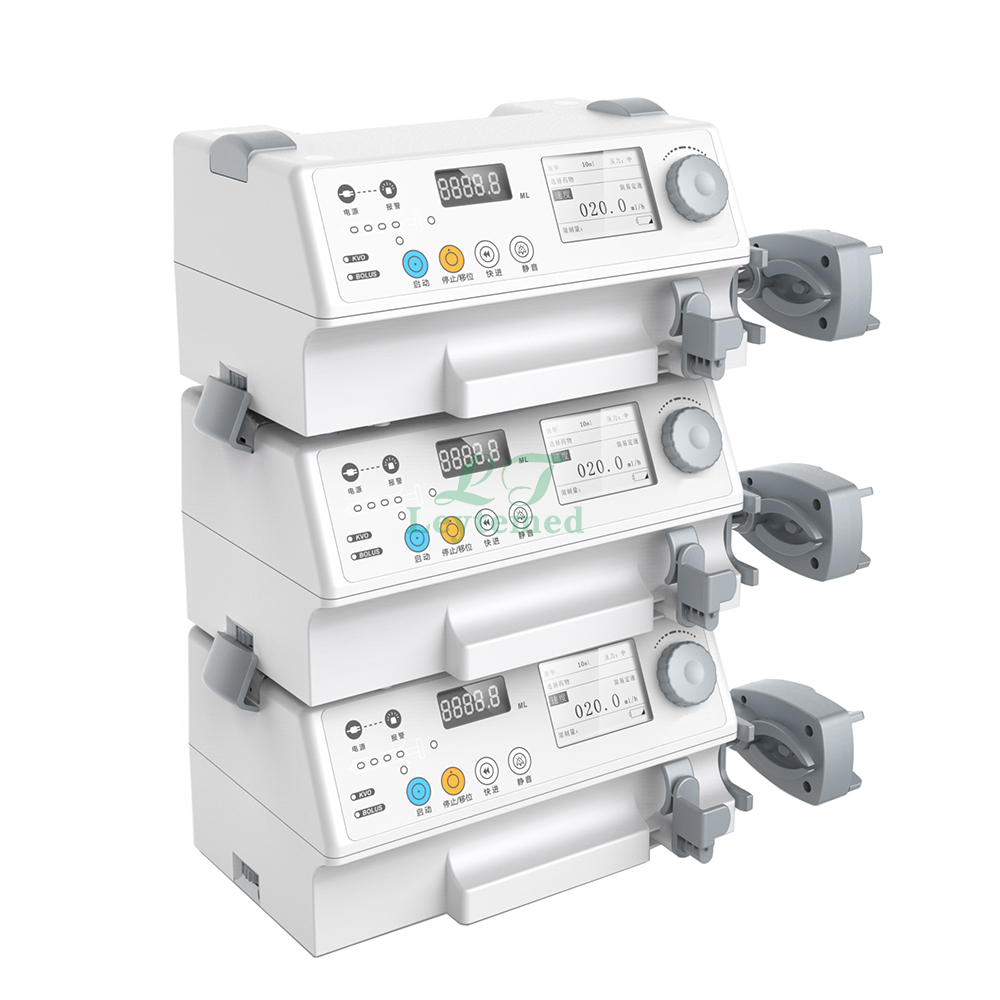

    1. Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of clinical applications.

    2. Stackable to be the maximum 8 channels.
    3. Transfer the message between the Nurse-call System and the pumps.


  • Details
  • Pictures
  • Service
  • Q&A
  • Features & Functions:

    1. Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of clinical applications.

    2. Stackable to be the maximum 8 channels.
    3. Transfer the message between the Nurse-call System and the pumps.

    4. Three working modes: rate mode, time-volume mode, dosage-weight mode.

    5. Unique Voice Alarm system and accurate injection rate make the injection process safer and more reliable.

    6Have store many brands syringes,Automatically calibration and compatible with any brand syringes.

    7. Large LCD screen displays working status.

    8. KVO and Bolus functions.


    Technical parameters:

    Product nameStackable syringe pump LTSI09
    Unique Voice Alarm systemThe device triggered the voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
    Flow rate

    50ml syringe:0.1~1500ml/h;

    30ml syringe:0.1~900.0ml/h;

    20ml syringe:0.1~600.0ml/h;

    10ml syringe:0.1~300.0ml/h

    The range of limiting volume0~999.9ml
    The range of injected volume

    0~9999.9ml

    Accuracy of flow rateWithin ±3%(Choose the syringe of specified manufacturer correctly. This accuracy of flow rate is not including the errors of syringe itself.)
    Purge rate

    Purge rate of 50ml syringe:1500ml/h;

    Purge rate of 30ml syringe:900.0ml/h;

    Purge rate of 20ml syringe:600.0ml/h;

    Purge rate of 10ml syringe:300.0ml/h

    Alarm and warmsThe pump can give out alarming when injection soon finish, injection finishing, injection of limited amount finished, injection is blocked, syringe falls off, syringe is improperly installed, setting error, AC power has been pulled out, low battery and so on.
    Injection blocked

    Choose in the three kinds of occlusion alarm pressure according to the clinical requirements(High,Medium,Low)

    KVO rate1ml/h
    Fuse specificationF1AL/250V ,two fuses(installed inside pump)
    Operating power

    AC100~240.0V, 50/60Hz,  Power:≤30VA

    Internal rechargeable battery: DC 11.1V,capacity≥1600mAh. The device could work constantly more than 4 hour at medium speed running mode, after the battery charged for 10 hours.

    Operating environmenttemperature:+5~+40°C,  relative humidity:20~90%
    Storing environmenttemperature:-30°C~+55, relative humidity:≤95%, ( No condensation state )
    Atmospheric pressure

    860hPa~1060hPa

    Safety levelClass II with insulated enclosure, internal power supply, BF-type continuous normal running equipment.
    IP gradeIPX1
    Dimensions280(L)×210(W)×130(H)(mm)
    Weight2.2kg
    AccessoriesPower line,operating manual,warranty card,product certification.
