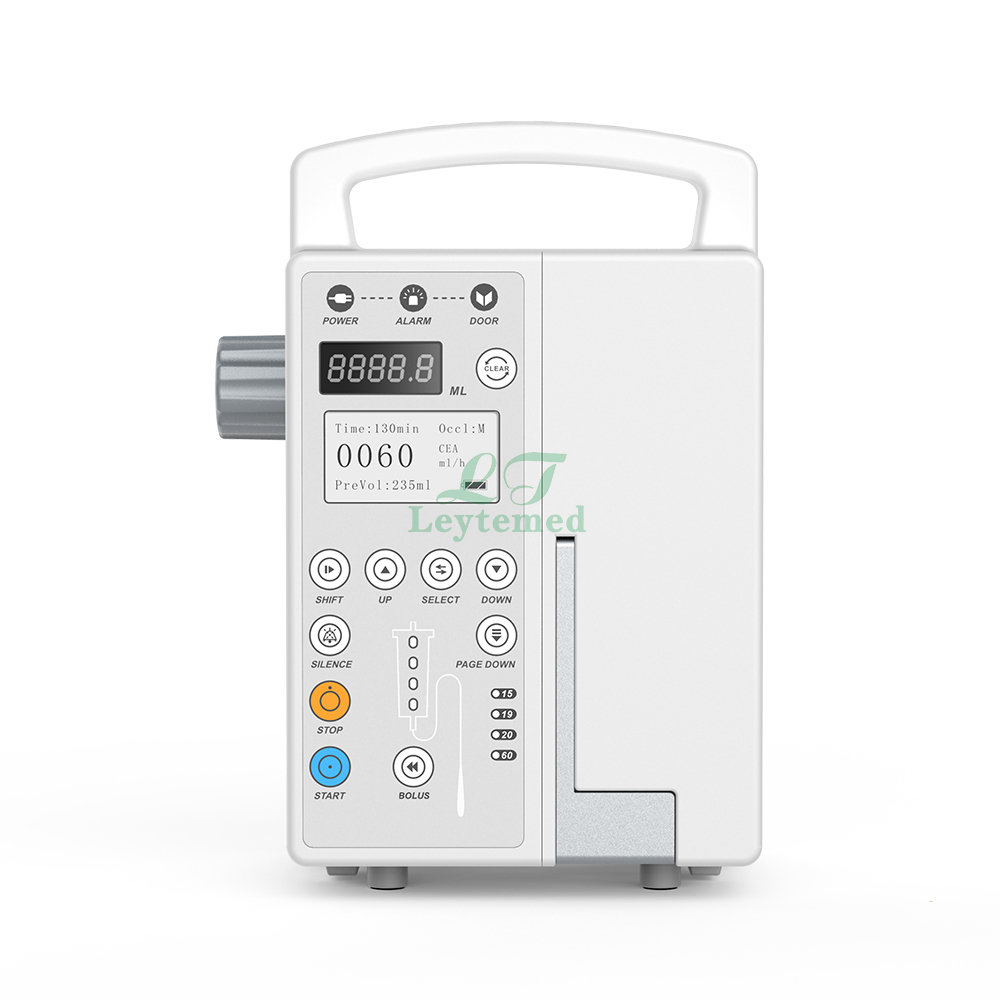

LTSI04 Infusion Pump
Features & Functions:
1.Bubble detector and pressure sensor can precisely detect tube air bubbles
2.Unique Voice Alarm system and accurate injection rate make the injection process safer and more reliable.
3.HD LCD display working status.
4.Have store many brands IV sets,Automatically calibration and compatible with any brand infusion sets.
5.Work mode: ml/h and drop/min, and these two modes can switch freely.
6.KVO and Bolus functions.
Technical parameters:
SPECIFICATION
Product name
LTSI04 Infusion Pump
Unique Voice Alarm system
The device triggered the voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Infusion rate
1ml/h~1,200ml/h
Purge rate
100ml/h~1,200ml/h (100 ml/h increment)
KVO rate
1ml/h~5 ml/h (1ml/h increment)
Accuracy
Within ±5% (after correct calibration)
Infusion Volume
1ml~9999ml
Total Infusion Volume
0.1ml~9999.9ml
Occlusion detection pressure
High: 800±200 mmHg (106.7±26.7 kPa)
Medium: 500±100 mmHg (66.7±13.3 kPa)
Low: 300±100 mmHg (40.7±13.3 kPa)
Bubble detector
Ultrasonic wave detector; detection sensitivity ≥25μL
Alarms
End of injection, occlusion, door open, bubbles in the tube, wrong setting, low battery, AC power pulled out etc.
Power
AC100V~240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
Operation conditions
Ambient temperature: +5°C~+40°C;
Relative humidity: 20~90%
Atmospheric pressure: 86.0kpa~106.0kpa
Storage conditions
Ambient temperature: -30°C~+55°C
Relative humidity: ≤95%
Equipment Classification
Class II, internal power supply, Type BF
IP grade
IPX1
Dimension
140mm (L) × 157mm (W) × 220mm (H)
Weight
1.8kg (net weight)
Quality
CE certification
-
Packing & DeliveryUPS/DHL/FEDEX/TNTBy SeaThe volume of goods is large and needs to go by sea.It takes about one month to arrive.AircraftAircraft transportation takes 2-7 days to arrive.
-
