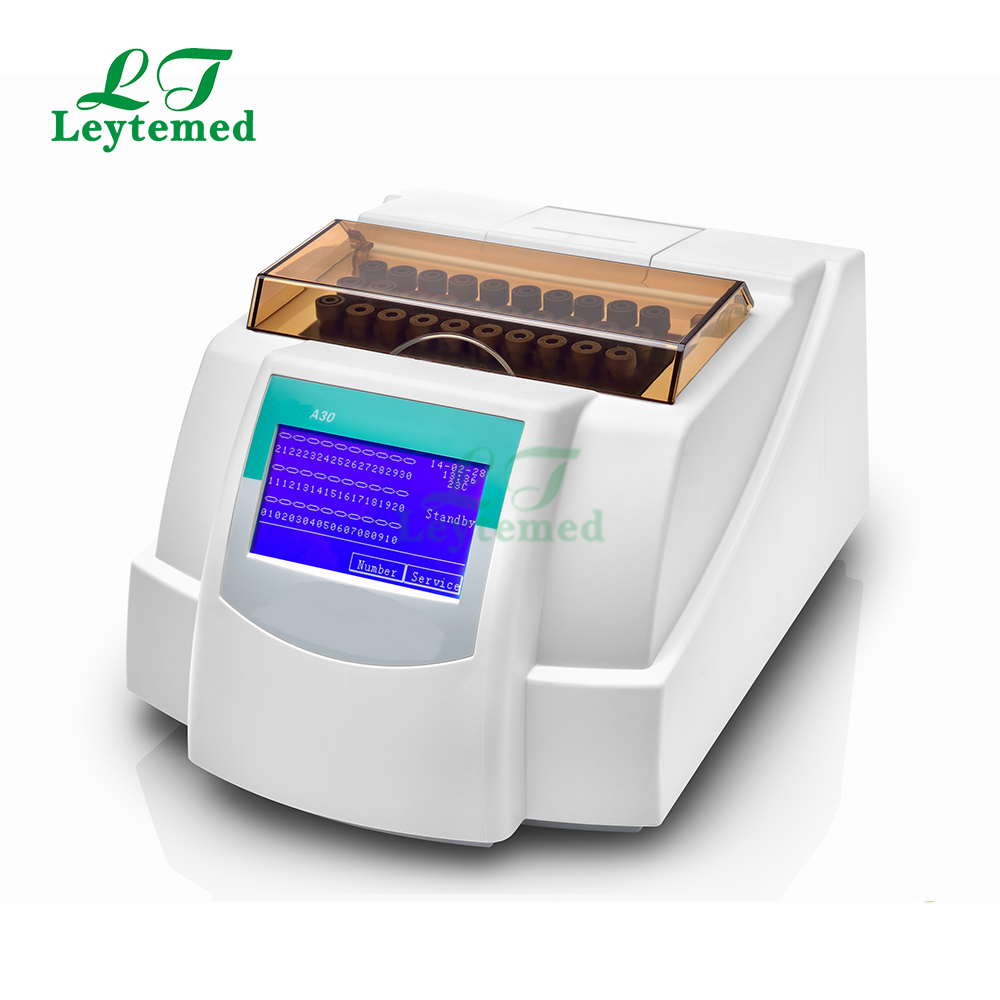

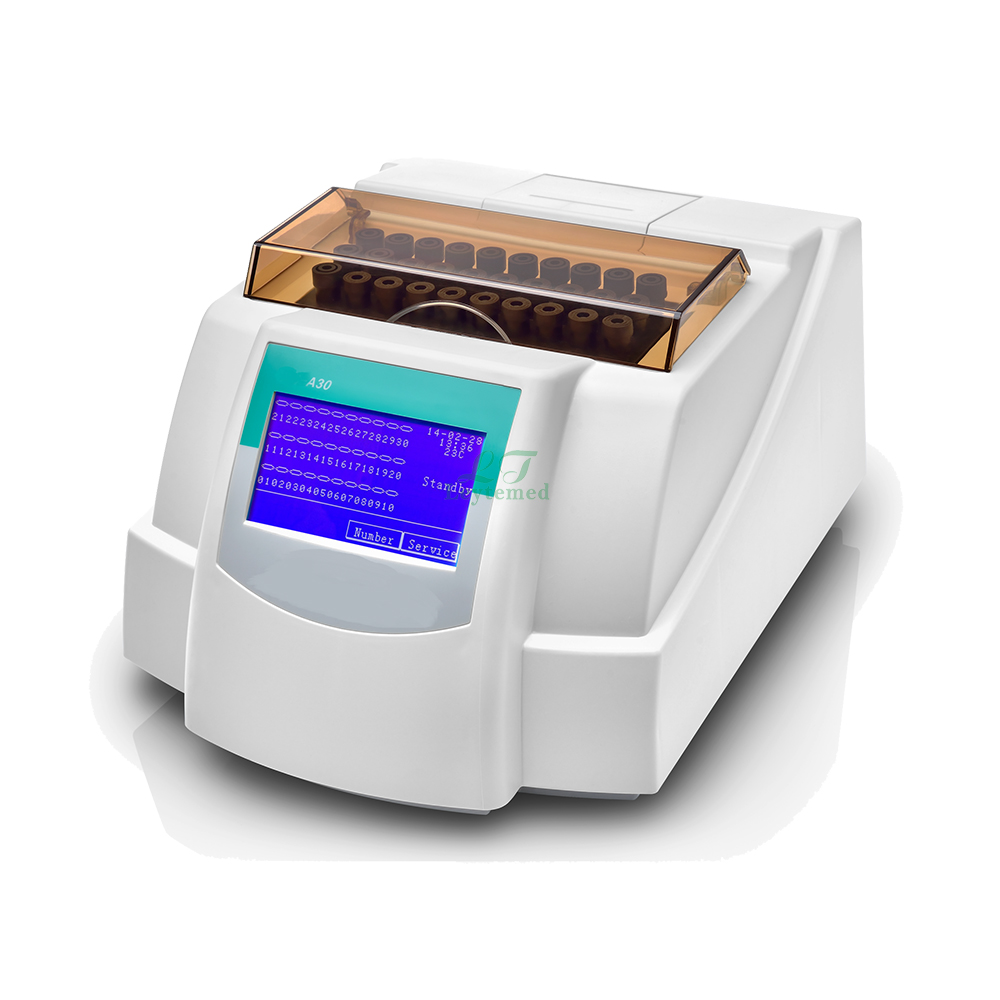

LTCR03 Portable medical ESR analyzer
  • LTCR03 Portable medical ESR analyzer
  • LTCR03 Portable medical ESR analyzer

  • No: LTCR03
  • Type: ESR analyzer
  • Dimension: size :320mm×260mm×158mm 5KG
  • Characteristics:

    Random access

    Up to 30 samples can be scanned simultaneously

  • Details
  • Pictures
  • Service
  • Q&A
  • Features

    Random access

    Up to 30 samples can be scanned simultaneously

    Throughput: up to 60 samples /hour

    Temperature compensation refer to 18ºaccording to Westergren method

    ESR curve display and print-out

    Touch screen , large LCD display

    Built-in thermal recorder


    Area of application  Erythrocyte sedimentation rate analysis

    Measuring principle    Infrared sensor

    Reading channels   30 available channels

    Loading capability  Up to 30 samples at a time

    Loading pattern     Random

    Measuring time     30 minutes or 60 minutes selectable

    Throughput       Up to 60 samples per hour

    Analysis result    In Westergren ESR value (mm/hr)

    Temperature compensation    Refer to 18°C automatically (selectable)

    Reading resolution         0.2mm

    Reproducibility          < 0.3% or 2mm/1h

    Result resolution         1mm/1h

    Blood level range        50mm~64mm

    Display        LCD screen with backlight

    Input         Touch screen

    Interface      RS-232 serial port

    Print         Internal thermal recorder

    Power supply    AC 220V/110V ±10%, 50/60/Hz, 50W

    Operation conditions   Temperature 15C°~32°C  Humidity 85%

    Dimension         400mm×300mm×200mm(L×W×H)

    Net weight         11.5kg


  • Packing & Delivery
    We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
    By Sea
    The volume of goods is large and needs to go by sea.It takes about one month to arrive.

    Aircraft transportation takes 2-7 days to arrive.

  • FAQ

    Q:What's the minimum order quantity (MOQ)?
    A:For most of our medical products, even order for only one unit is warmly welcomed.

    Q: Can you do OEM/ private label?
    A: Of course we can do OEM/private label for you.

    Q: What's your delivery time?
    A: Generally it is 10 days if the goods are in stock.
    or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: How to ship the order?
    A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

    Q: What is your terms of payment ?
    A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
