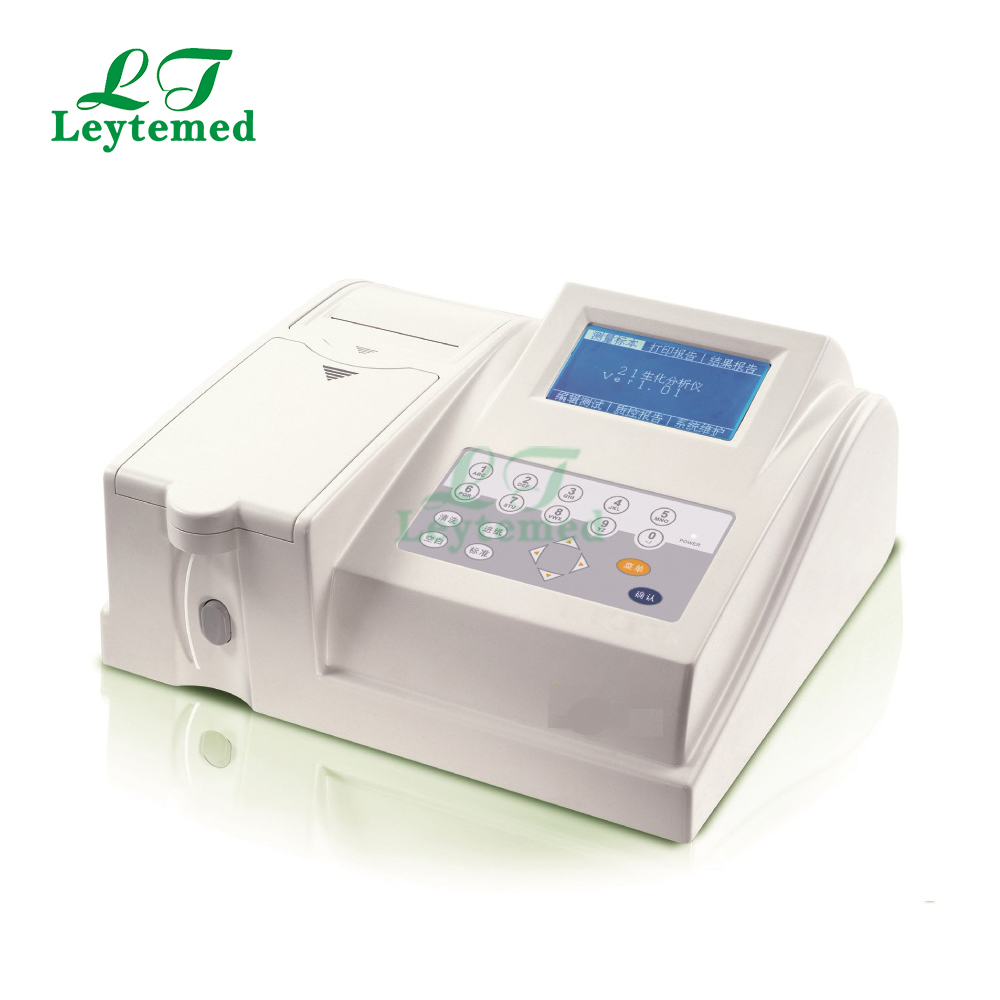

LTCC05 medical portable semi-auto chemistry analyzer
  • LTCC05 medical portable semi-auto chemistry analyzer
  • LTCC05 medical portable semi-auto chemistry analyzer

  • No: LTCC05
  • Type: Chemistry analyzer
  • Dimension:
  • Characteristics:
  • Details
  • Pictures
  • Service
  • Q&A
  • LTCC05 semi-auto chemistry analyzer

    Light Source: 6V 10W, halogen lamp of more than 2000 hours life time

    Spectrometerinterference filter.

    Wavelength: 340nm380nm405nm505nm546nm578nm620nm, and one wavelength free.

    CML precision: ±2nm

    FWHM10nm

    Stray light:≤0.5%(absorbance2.5)

    Absorbance range: -0.214~3.000

    Absorbance linearity: ±1%

    Absorbance repeatability±0.001

    Absorbance resolution: 0.0001

    Precision: 1.0

    Carry over: ≤1%

    Temperature: 25℃、30℃、37,±0.3

    Flow cell:permanent quartz flow cell, minimal volume is 32μL, and disposable flow cell is selectable

    Sampling system: pressure auto releasing pumps ensure the accuracy of suction volume

    Operational system: VISTAWindows XPWindows2000

    Test Method: End point,Fixed time,Kinetic,Factor,Muli-standards,Bichromatic,Dual wavelengths

    Parameter Setting: Patients profile and calculated item can be set easily

    Absoption volume: 200μL~3000μL

    Sample volume: 10μL~50μL

    Reaction curve: real time display the reaction curve

    Memory: Able to store more than 200 parameters while 55 parameters of them are stablized ;

    Able to save more than 15000 test results and auto save the results if the power is off during working

    QC: auto draw the QC figure

    Reagent: Open reagent

    Display: LCD with high brightness

    Input: key button and touch screen

    Printer: Inner thermal printerable to be connected to external printer

    Report content: absorbanceconcentrationactivity, detailed patient information and abnormal results marking

    Interface: RS-232 serial port, able to be connected to computer

    Working Condition: Temperature:10℃~30℃;Relative Humidity:20%~80%

    Voltage: AC 85-264V,auto adapt according to the input voltage

    Power : 100W

    Quality System: Recognized by TUV and CMD

    Test item

    Liver

    ALT、ALP、GGT、TP、Alb、TBIL、DBIL

    Heart

    LDH、CK、CK-MB、AST、 a-HBDH

    Lipids

    CHO、TG、HDL_C、LDL_C

    Lipoprotein

    Apo A1Apo BLpa

    kidney

    BUN、CRE、UA

    Ion

    Na、Mg、Ca、K、P、Cl

    Other

    CO2-CP、AMS、LIP、GLU、IgAIgGIgM、C3、C4、CRP


  • Packing & Delivery
    UPS/DHL/FEDEX/TNT
    We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
    By Sea
    The volume of goods is large and needs to go by sea.It takes about one month to arrive.

    Aircraft
    Aircraft transportation takes 2-7 days to arrive.


  • FAQ

    Q:What's the minimum order quantity (MOQ)?
    A:For most of our medical products, even order for only one unit is warmly welcomed.

    Q: Can you do OEM/ private label?
    A: Of course we can do OEM/private label for you.


    Q: What's your delivery time?
    A: Generally it is 10 days if the goods are in stock.
    or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: How to ship the order?
    A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

    Q: What is your terms of payment ?
    A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
