Feature
1. Tri-angle laser scatter for WBC differentiation
2. WBC amount counting by laser
3. Reliable hardware
4. No extra PC required, 10.4 inch touch screen

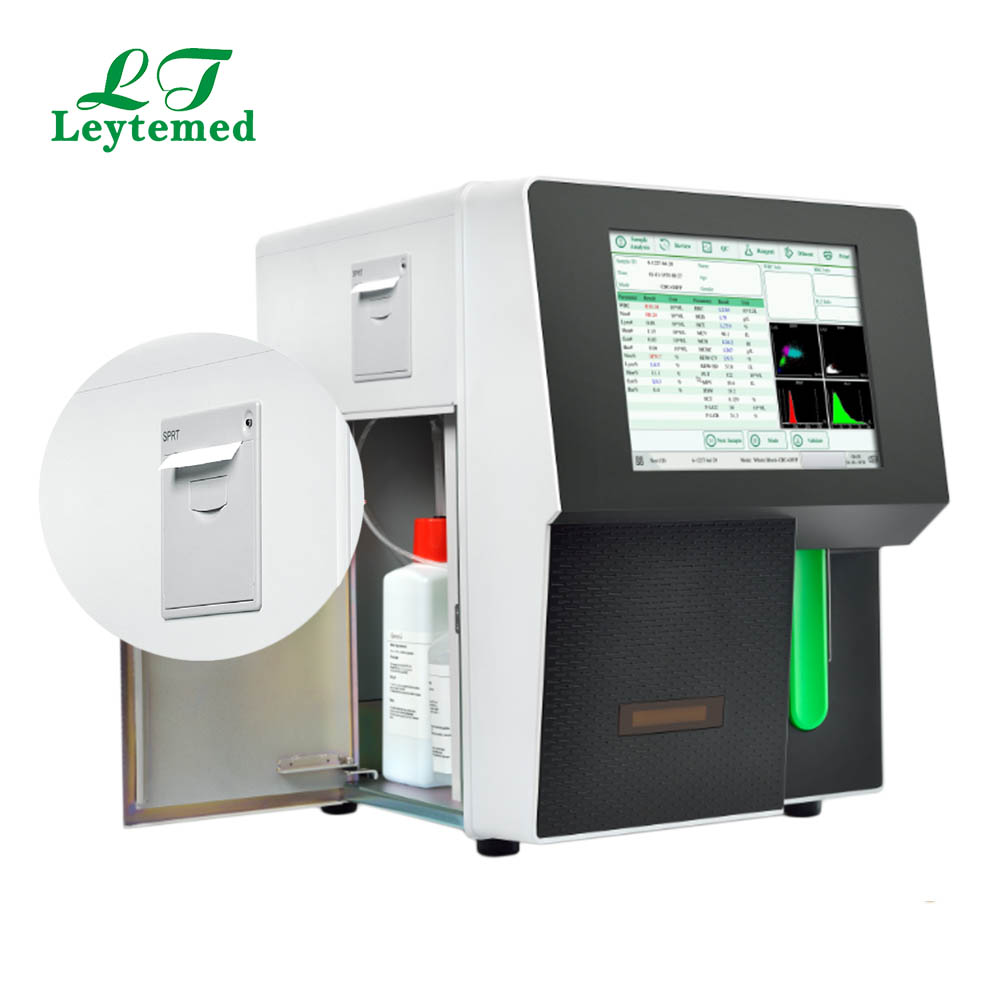

5. Built-in barcode scanner and printer
6. 2 Lyses are placed in the analyzer
7. 3 reagents for one test
Throughput: 60 samples/hour
Principle: "Tri-angle laser scattering and sheath flow for
WBC differentiation and counting, impedance for
RBC and PLT, cyanide-free method for HGB"
Channels: 2
Aperture diameter: RBC/PLT chamber: 70um
Parameters: "25+4 parameters: WBC, Lym%, Mon%, Neu%, Bas%,
Eos%, Lym#,Mon#, Neu#, Eos#, Bas#, RBC, HGB, "
"HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT,
P-LCR, P-LCC, LIC%, LIC#, "
ALY%, ALY#
Histograms: 4 scatter-grams, 2 histograms(including RBC, PLT histograms)
HGB lamp: LED530nm
Sample volume: Whole blood mode: 20ul, Pre-diluted mode: 20ul
Calibration: Manual, auto and fresh blood calibration
Counting modes: Whole blood, capillary whole blood, prediluted
Print : Auto print, manual print
LIS: Support LIS
Reagent: Standard: Diluent: 20L, DIFF Lyse: 500ml, LH Lyse: 100mL
Cleanser: Standard: Probe cleanser: 50ml
Input: 10.4 inch touch screen, keyboard, mouse
Output: Internal printer, support external printer
Printer paper: 57×35mm
Interface: RS232 port, 4 USB ports, 1 network ports
Storage: 50,000 results with histogram

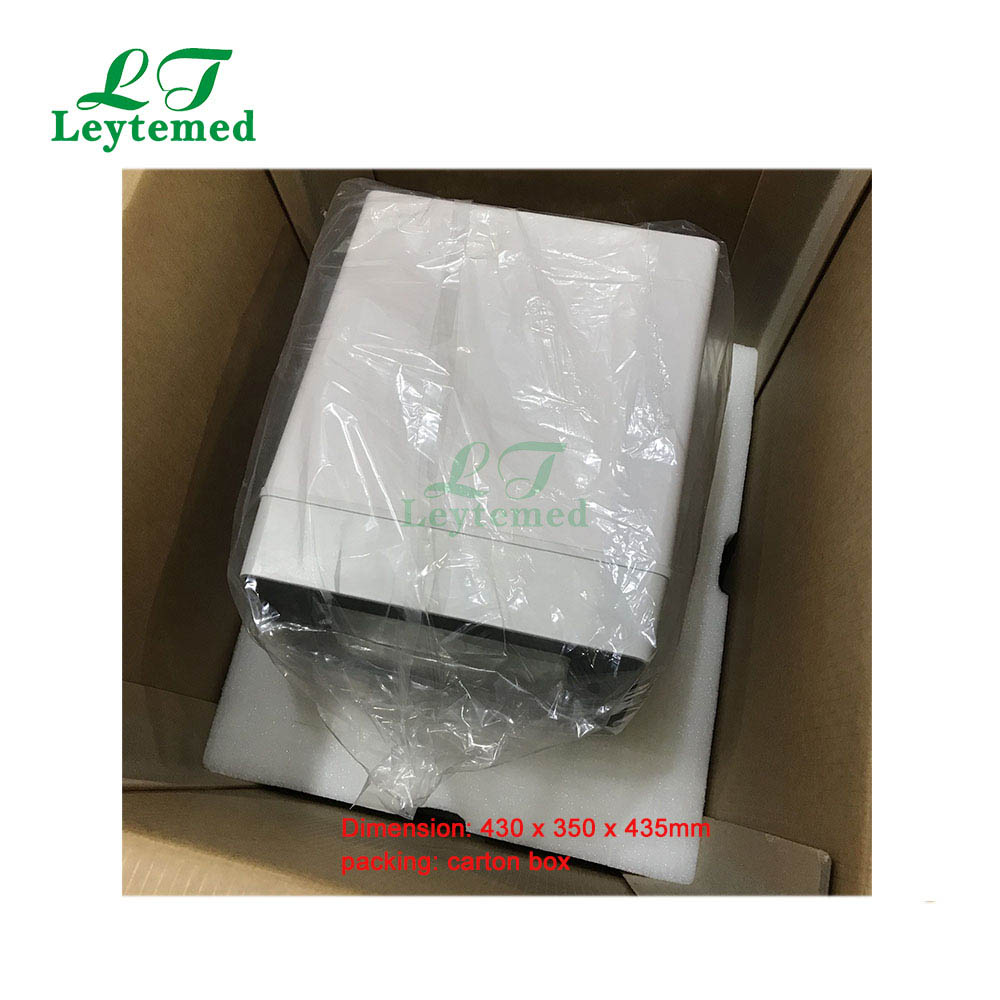

Dimension: 430 x 350 x 435mm
Blockage clear: High voltage, high pressure flush
Net weight: 28KG
Work temperature: 10-30°C
Power requirement: 100～240 AC, 50/60Hz, 300VA
Relative humidity: ≤85﹪
Atmospheric pressure: 70.0kPa-106.0kPa
Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.
Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.
Q: What's your delivery time?
A: Generally it is 10 days if the goods are in stock.
or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.
Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
